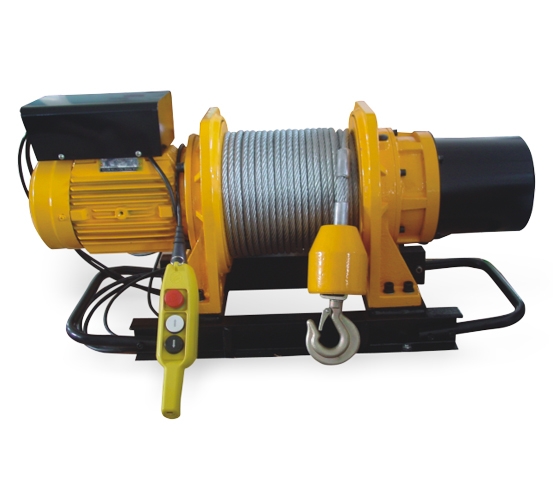

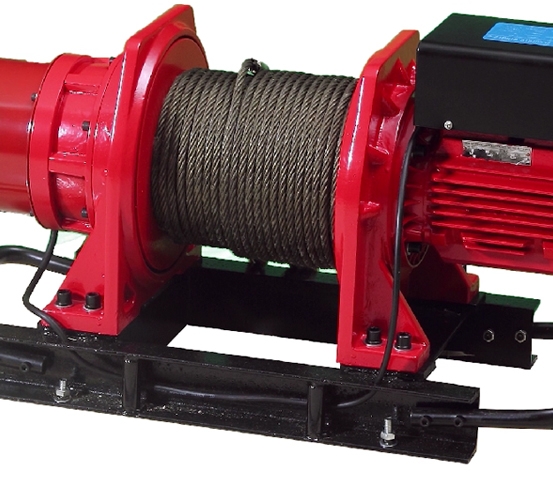

KDJ-500E1-750E1-1000E1-10000E1---Electric Windlass

Rated Capacity:500(kg)---1000(kg)
Contact Now
Drum transmission structure:it adopts planet gears transmission way.Coupling leads the drum turn directly.And it's very to replace rejected wire rope or change the rotation direction of wire rope.
Wire Rope Fixing:add one PT screw on the drum,it's more safer than normal wire rope fixing.it can ensure no escape of wire rope from the drum.
Brake mechanism:it adopts electromagnetism brake,Select wearable brake slice.it's very simple,no need to adjust the clearance,Brake will automatically apply in the event of power cut.It can control the drop distance of heavy load,safe and reliable.
Gear Box:made of ductile cast iron FCD-45# steel.Durable and nonbreakable.
Speical motor:insulated B,with the features of big start torque,small inertia,lower temperature rise,it can work frequently for a long time.
Driving Gear:made of high-quality steel.Pass heat treatment and high precision process.It has features of wearable,low noise,high driving efficiency and good performance.
Machine Fixture:standard channel steel welded.It's convenient used for building site, storage and port,etc.

Model
KDJ-500E1
DKJ-750E1
DKJ-1000E1
Load rated(kg)
500
750
1000
Speed(m/min)
13
13.5
Motor(V)
1.5
2.2
3
Pole
4
Voltage(V)
Three phase 220/380/415/440/480
Frequency(Hz)
50/60
Lifting Height(m)
58
Steel Cable(mm×m)
ф9
ф11
Wire Rope Capacity(m)
60
N.W.(kg)
139
150
161

Dimensions mm

Model
KDJ-500E1
DKJ750E1
KDJ-1000E1
A
4-ф14
4-ф18
B
400
C
330
D
922
935
E
372
F
430
G
240
H
ф140
