Drum transmission structure: it adopts 2-level gears transmission way. with simple construction and convenient manufacturer.
Wire Rope Fixing: add one PT screw on the drum, it's more safer than normal wire rope fixing. it can ensure no escape of wire rope from the drum.
Brake mechanism:it adopts electromagnetism brake,Select wearable brake slice.it's very simple,no need to adjust the clearance,Brake will automatically apply in the event of power cut.It can control the drop distance of heavy load,safe and reliable.
Gear Box:made of high-quality steel.Pass heat treatment and high precision process.it has the features of wearable,low noise,high driving efficiency and good performance.
Control system:handle switch is low voltage.IP65.safe and reliable.
|
Model
|
KDJ-250B
|
KDJ-500B
|
KDJ-250B1
|
KDJ-500B1
|
|
Rated Capacity(kg)
|
250
|
500
|
250
|
500
|
|
Lifting Speed (m/min)
|
15
|
20
|
30
|
20
|
|
Cable diameter(m)
|
Φ5
|
Φ6
|
Φ5
|
Φ6
|
|
Wire Rope Capacity(m)
|
60
|
|||
|
Motor(kw)
|
1.1
|
2.2
|
1.1
|
2.2
|
|
Pole
|
4
|
|||
|
Voltage(V)
|
230
|
Three Phase 380
|
||
|
Frequency(Hz)
|
50
|
|||
|
Lifting Height(m)
|
58
|
|||
|
N.W.(kg)
|
64
|
106
|
64
|
106
|

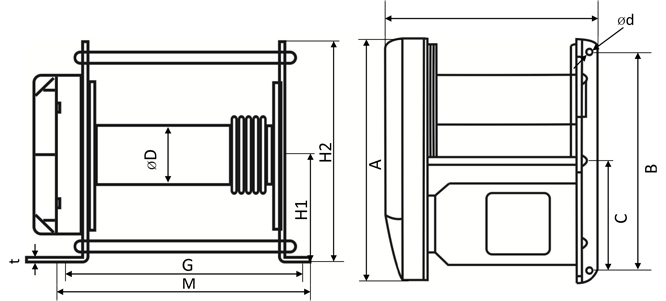

Dimensions mm
|
Model/Symbol
|
KDJ-250B
|
KDJ-500B
|
KDJ-250B1
|
KDJ-500B1
|
|
A
|
436
|
520
|
436
|
520
|
|
B
|
295
|
480
|
295
|
480
|
|
C
|
240
|
|||
|
D
|
83
|
122
|
83
|
122
|
|
d
|
13
|
15
|
13
|
15
|
|
E
|
380
|
415
|
380
|
415
|
|
F
|
265
|
270
|
265
|
270
|
|
G
|
322
|
338
|
322
|
338
|
|
G1
|
147
|
188
|
147
|
188
|
|
G2
|
305
|
372
|
305
|
372
|
|
M
|
345
|
370
|
345
|
370
|
|
t
|
8
|
10
|
8
|
10
|
-
