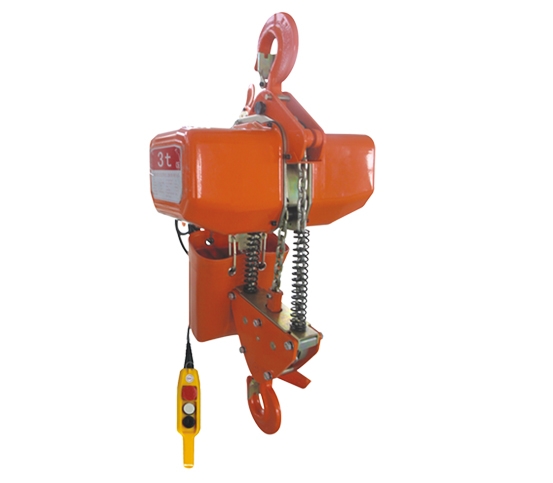

HHXG-K1--HHXG-K3---Round Chain Electric Hoist
Rated load:1000kg;2000(kg);3000(kg)
Approved: CE
Contact Now
Approved: CE
This organic adopts die-casting aluminium principle, legerity and agility, up and down position limit protection device,phase proteetion device and electromagnetic brake device.
|
Model
|
HHXG-K1
|
HHXG-K2
|
HHXG-K3
|
|
Rated Capacity (kg)
|
1000
|
2000
|
3000
|
|
Load Chain(mm×mm)
|
φ7.1×21
|
||
|
Handle Control Voltage(V.AC)
|
24
|
||
|
Power(KW)
|
1.5
|
||
|
Lifting height(m)
|
6
|
3
|
|
|
Lifting speed(m/min)
|
7.2
|
3.6
|
2.4
|
|
Work Rate
|
S3-30% 20 min
|
||
|
Rated Volt(V)
|
AC230/380/420/440 50/60Hz
|
||
|
N.w(kg)
|
68/60
|
70/62
|
90/79
|
-
