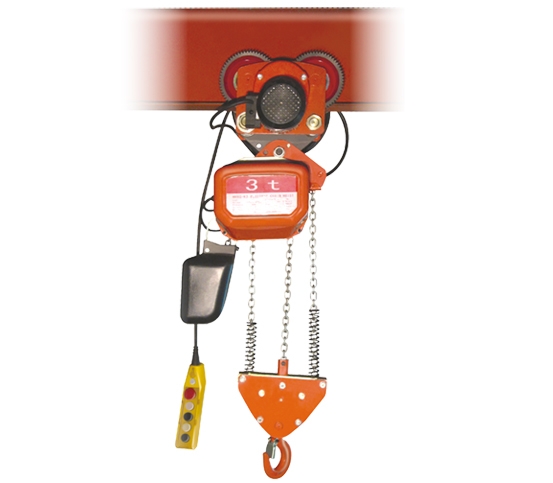

HHDD-H0.5-H1-K1-K2-K3---Moving Chain Hoist

Rated Load:500-3000Kg

Approved: CE
Contact Now
This organic adopts die-casting aluminium principle, legerity and agility, up and down position limit protection device,phase proteetion device and electromagnetic brake device.

Model
HHDD-K1
HHDD-K2
HHDD-K3
HHDD-H0.5
HHDD-H1
Rated Capacity
kg
1000
2000
3000
500
1000
Lifting Height
m
6
3
3
6
3
Lifting Speed
m/min
7.2
3.6
2.4
7.2
3.6
Load Chain
φmm x mm
7.1 x 21
Rated Volt
V
AC220/380/420/440 50/60Hz
AC100/110/120/220/230/240 50/60Hz
Hoist Power
kw
1.5
0.85
Trolley Power
kw
0.6
0.45
Moving Speed
m/min
20
Handle Control Voltage
V.AC
24
Min Radius of Crooked Track Which Can Pass
m
2
Model of steel beam
a
20a - 45a
Width of Track
mm
100 - 150
Work Rate
S3-30% 20min
G.W/ N.W
kg
144/126
146/128
160/142
146/128
144/126
