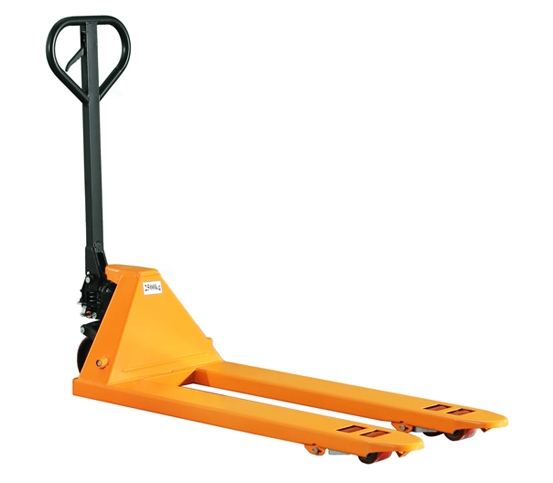

KX-SDCZ-5000---Manual Pallet Truck

Rated load:5000Kg
Contact Now
This series truck adopts high quality carbon forming steel, reliable strength,strong and durable.
The core part of main part oil pump is imported, oil pump assy pass pressure Mpa test, no oil leakage, no distortion.
The main active part assembles oilless bearing, enhance the wear-resisting degree, durable, prolong the service life.


Main technical data
Articles/model
unit
KX-SDCZ-5000
Q Rated load
kg
5000
Carrying wheel
mm
φ80/70
Steering wheel
mm
φ200/50
h Fork lowest height
mm
90
h1 Max.fork height
mm
210
h2×b Fork size
mm
65/160
L Fork length
mm
1150/1220
Overall height (exclude the handle)
mm
786
B Overall width
mm
550/685
L1 Overall length
mm
1530/1600
