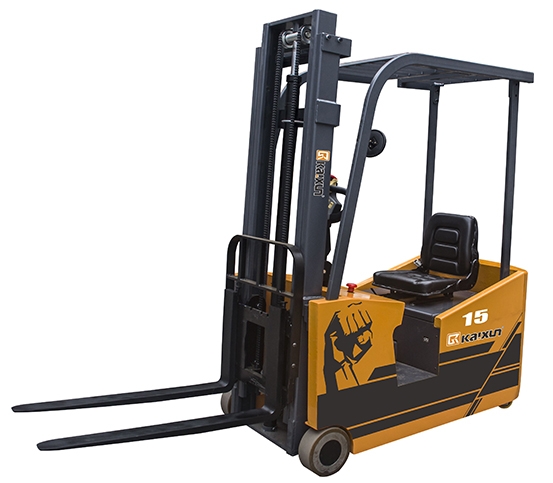

KX-CPDC15---Balance Truck

Rated load:1500Kg
Contact Now
Sitting full electric stacker, it can reduce the operator' s work intensity.
Handle accord with human body engineering design, compact and steady. All operation can be done through handle.
Durable large capacity traction battery, convenient and rapid charging.
Superpower driving and lifting dc motor, it has good performance of speed regulation, realize larger starting and braking torque function.
The stacker has reasonable design, compact structure and goodlooking
appearance. C type forming steel door frame is the biggest security.


Main technical data
Articles/model
unit
KX-CPDC15
Drive mode
QD
Electric
Driving mode
JS
Sitting
Rated load capacity
kg
1500
Load center distance
PU
500
Wheel material
mm
Polyurethane
Front wheel
mm
Φ210×80
Rear wheel
mm
Φ115×55
Driving wheel
mm
Φ250×75
Overall length
mm
2952
Overall width
mm
933
Overall height
mm
2115
Ground clearance
mm
93
Wheel base
mm
1374
Turning radius
mm
1710
Front overhang
mm
174
Front wheel track
mm
833
Rear wheel track
mm
676
Gradeability
%
3
Driving speed(No-load)
km/h
5.5
Driving speed(Full-load)
km/h
5
Lifting speed(No-load)
mm/s
100
Lifting speed(Full-load)
mm/s
80
Mast dip angle(Front/Back)
o
3/6
Brake mode
Z
Electromagnetic
N.W.
kg
1882
