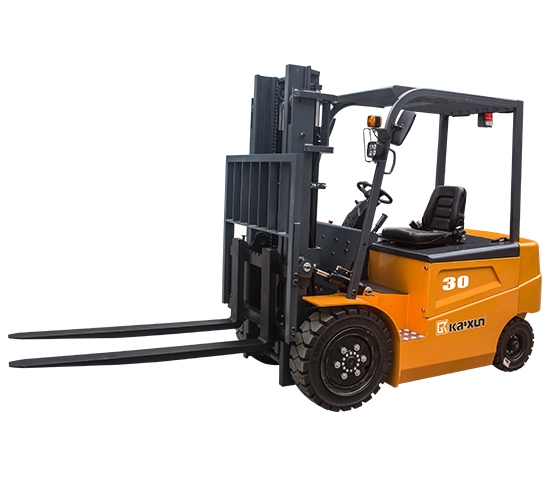

KX-CPD30-35---Electric Forklift

Rated load:3000Kg;3500Kg
Contact Now
Sitting full electric stacker, it can reduce the operator' s work intensity.
Handle accord with human body engineering design, compact and steady. All operation can be done through handle.
Durable large capacity traction battery, convenient and rapid charging.
Superpower driving and lifting dc motor, it has good performance of speed regulation, realize larger starting and braking torque function.
The stacker has reasonable design, compact structure and goodlooking
appearance. C type forming steel door frame is the biggest security.


Main technical data
Articles/model
unit
KX-CPD30 KX-CPD35
Drive mode
QD
Electric
Driving mode
JS
Sitting
Rated load capacity
kg
3000
3500
Load center distance
mm
500
Overall length(Without fork)
mm
2560
Overall length(With fork)
mm
3600
Overall width
mm
1250
Overall height(Mast lowered height)
mm
2200
Overall height(Overhead guard height)
mm
2200
Overall height(Mast extended height)
mm
4200
Ground clearance
mm
130
Wheel base
mm
1680
Turning radius
mm
2410
Front overhang
mm
458
Front wheel track
mm
1000
Rear wheel track
mm
980
Gradeability
%
15
Driving speed(No-load)
km/h
13
Driving speed(Full-load)
km/h
12
Lifting speed(No-load)
mm/s
410
Lifting speed(Full-load)
mm/s
340
Mast dip angle(Front/Back)
o
6/10
Max.Tracyion
KN
16
N.W.
kg
4760
5570
